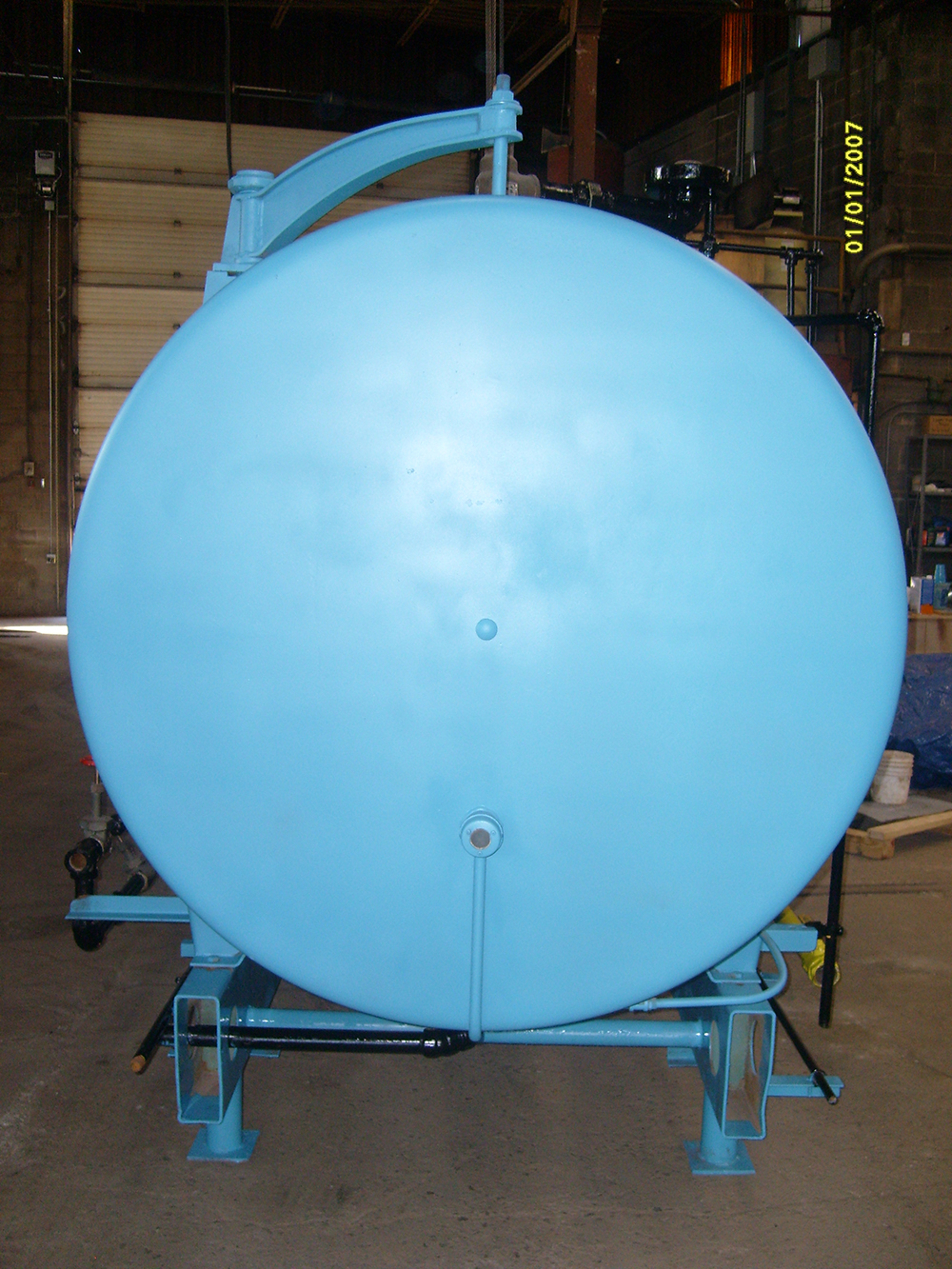

Cleaver-Brooks Steam Boiler – Item #43025

ITEM NO: 43025
HP/CAPACITY: 185 hp / 6,382.5 lb/hr
PSI: 150
MANUFACTURER: Cleaver-Brooks
MODEL NO: CB200-185
SERIAL NO: L-78375
YEAR: 1984
FUEL: Natural Gas,  #2 Fuel Oil
STATE ID: 190302
NATIONAL BOARD NO: 7690
HEATING SURFACE: 358 sq. ft.
PASSES: 2
DESIGN: Dry back

Features:

  • Magnetrol primary low water cut off and pump control
  • Magnetrol float type secondary low water cut off with manual reset float
  • Full modulating firing sequence
  • Flame safeguard control CB/Honeywell 7800 with display
  • Control panel mounted and wired for single point power connection 480/3/60
  • Safety valves (new) set 150 psi – shipped loose
  • Low fire hold
  • Gas train with two motorized valves, piped and wired
  • Collector pipe for continuous blowdown with conductivity controller and 1/2” metering valve
  • (2) Quick opening blowdown valves – mounted
  • (1) Slow opening blowdown valve – mounted
  • Continuous feedwater package
  • 122-12 Equimeter
  • Feedwater 1-1/2″ to 3/4″ motorized to 1-1/2″
  • 3” Butterfly valve
  • 2-1/2” Gas valve
  • 2” Regulator
  • 4” Steam outlet
  • Blower motor: 15 hp
  • Maximum current load: 88 A

Note: Installation, shipping, and applicable taxes are not included.
Delivery: 2 weeks
Price (painted and with new gaskets)………………………………………..$26,200.00
